The functional characteristics and core advantages of electric heating drying room

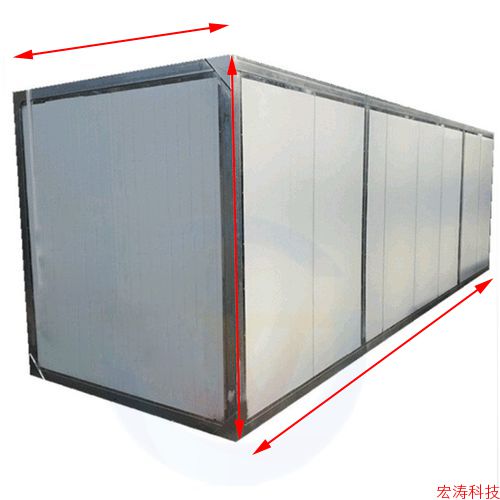

Electric Heating Drying Room | Electric Drying Machine | Wood Drying Machine Equipment | Microwave Drying Machine | Vanishing Mold Drying Equipment

Electric heating drying room is a non-standard customized equipment that uses electric energy as the heat source and achieves material drying through hot air circulation. Its core advantages are reflected in high efficiency, environmental protection, and intelligent control. The equipment is equipped with a high-temperature resistant fan and an automatic temperature control system, adopting a fully enclosed circulation structure, which can accurately control temperature and humidity to meet the requirements of different materials for drying processes. Compared with traditional coal-fired drying rooms, it avoids environmental pollution; Compared with heat pump drying rooms, it is not affected by weather and has lower initial investment, so it is widely used in multiple industries.

The core composition and working principle of an electric heating drying room
Main component configuration

-      Heating system: The core is an air duct heater with built-in matching power electric heating tubes. It converts pure electrical energy into heat and supports segmented temperature control. The temperature adjustment range is usually 30 ℃ -80 ℃, and some equipment can be expanded according to demand.

-      Circulation and temperature control system: equipped with high-temperature resistant axial flow fan to achieve uniform circulation of hot air; The automatic temperature control system includes over temperature protection (such as bounce type temperature control switch) and humidity control function. Some models support heat recovery devices to improve energy utilization efficiency.

-      Bearing and auxiliary structure: including split type drying car, tray, track (bottom track design facilitates material entry and exit), the material of the room body is mostly galvanized sheet, color steel plate or insulation rock wool board, ensuring insulation performance and durability.

Workflow

1.      Heat generation: The electric heating tube generates heat when powered, and the air is heated by the heater to form hot air;

2.      Circulating drying: The high-temperature resistant fan drives hot air to circulate inside the enclosed room, fully exchanging heat with the material and removing moisture;

three.      Intelligent control: Real time monitoring and adjustment of temperature and humidity through a temperature control system, automatically reducing energy consumption or shutting down after reaching the set parameters. Some equipment starts the heat recovery device to reuse waste heat.

Application Fields and Typical Cases of Electric Heating Drying Room

Applicable industries and material types

The application of electric heating drying rooms covers multiple fields, including but not limited to:

-      Processing of agricultural and sideline products: kelp, dried fish, chili, honeysuckle, dried bamboo shoots, fungi (such as morel mushrooms), garlic, flowers, dried fruits, vegetables, etc;

-      Drying of traditional Chinese medicinal materials: chrysanthemum, rhubarb, ginseng, etc., can retain effective ingredients and color;

-      Industrial production: solidification of chemical products, disinfection of medical equipment, drying of electronic components, film curing, motor heating, etc;

-      Food processing: sausages, dried meat, etc., with precise temperature control (such as drying sausages at 60 ℃ for 24 hours) to lock in flavor.

Typical application cases

-      Honeysuckle drying: set the temperature to 40 ℃, dry for 8 hours, and the finished product will have a golden color and complete aroma retention;

-      Dried morel mushrooms: dried at 50 ℃ for 12 hours, with a dry texture and easy long-term storage;

-      Sausage processing: Drying at 60 ℃ for 24 hours, resulting in a tight skin and delicious meat, while avoiding mold growth.

Selection points and equipment advantages of electric heating drying room

Key factors for selection

Users need to customize equipment based on the following parameters:

Selection factors;           Explanation

Drying room area and size;           Directly affecting the power of the heater and the overall layout of the equipment, it needs to be matched with the production site space
Temperature requirements;           The heating rate and temperature range (such as 30 ℃ -80 ℃, which can be adjusted normally) need to be adapted to the material characteristics (such as low-temperature drying of traditional Chinese medicine) [[3]]

Material type and output;           Design drying methods for different materials (such as fragile Chinese medicinal herbs and high moisture agricultural and sideline products), determine the number of trays and drying truck specifications
Control method;           Choose manual or intelligent control system (such as preset time, automatic shutdown function), balancing operational convenience and process accuracy [[3]]

Summary of Core Advantages

-      Environmentally friendly and pollution-free: fully enclosed structure, no exhaust gas or waste emissions, in line with national environmental policies, replacing coal-fired equipment;

-      Efficient and energy-saving: Fast heating and thermal efficiency of 35% -45% (traditional drying rooms only have 3% -7%), automatic reduction of electrical energy output after reaching the set temperature, combined with heat recovery devices to reduce energy consumption;

-      Easy to operate: intelligent temperature and humidity control, support segmented adjustment, over temperature protection function ensures safety, no need for professional personnel on duty [3];

-      Low investment and maintenance costs: The initial investment is less than that of the heat pump drying room, the material is durable and easy to maintain, and the labor cost only requires tray operation [2].

Comparison between electric heating drying room and other drying equipment
Comparison dimension                            Electric heating drying room;                       Coal fired drying room;                               Heat pump drying room

Environmental friendliness;                       No pollution, in line with environmental policies;         Serious pollution, gradually banned;           Low pollution, but requires outdoor unit installation space

Affected by the environment;           Unaffected by weather and temperature, operating 24/7;           Affected by fuel supply;           Greatly affected by environmental temperature, low temperature efficiency decreases [[2]]

Initial investment;                       Medium, lower than heat pump;                   Low, but including boiler cost;                   High, high equipment cost

Operating costs;           Electricity bills are the main focus, and significant energy savings are achieved after heat recovery;           Low fuel cost, but high labor cost [[1]]            The electricity bill is relatively low, but efficiency is limited by the environment
From the above comparison, it can be seen that electric heating drying rooms have significant advantages in terms of environmental friendliness, stability, and overall cost, especially suitable for small and medium-sized enterprises and scenarios with strict environmental requirements.
